Neural Geometric Level of Detail:
Real-time Rendering with Implicit 3D Surfaces

1NVIDIA
2University of Toronto
3McGill University
4Vector Institute
5Mila
CVPR 2021 (Oral)

We are able to fit shapes of varying complexity, style, scale, with consistently good quality, while being able to leverage the geometry for shading, ambient occlusion, and even shadows with secondary rays.

Qualitative side-by-side comparisons of baselines (orange) against ours (blue).

Comparison of no LOD blending (orange) vs LOD blending (blue).

Real-time demo of our renderer.

News


event [May 2021] Our code has been released.
event [April 2021] Our work was presented at the Torongo Geometry Colloquium. Check out the recording!
event [March 2021] Our paper was accepted as Oral Presentation to CVPR 2021!
event [Jan 2021] Twitter thread explaining our work in detail.
event [Jan 2021] Project released on arXiv.

Abstract


Neural signed distance functions (SDFs) are emerging as an effective representation for 3D shapes. SDFs encode 3D surfaces with a function of position that returns the closest distance to a surface. State-of-the-art methods typically encode the SDF with a large, fixed-size neural network to approximate complex shapes with implicit surfaces. Rendering these large networks is, however, computationally expensive since it requires many forward passes through the network for every pixel, making these representations impractical for real-time graphics applications.

Neural SDFs are typically encoded using large, fixed-size MLPs which are expensive to render.

We introduce an efficient neural representation that, for the first time, enables real-time rendering of high-fidelity neural SDFs, while achieving state-of-the-art geometry reconstruction quality. We represent implicit surfaces using an octree-based feature volume which adaptively fits shapes with multiple discrete levels of detail (LODs), and enables continuous LOD with SDF interpolation. We further develop an efficient algorithm to directly render our novel neural SDF representation in real-time by querying only the necessary LODs with sparse octree traversal. We show that our representation is 2-3 orders of magnitude more efficient in terms of rendering speed compared to previous works. Furthermore, it produces state-of-the-art reconstruction quality for complex shapes under both 3D geometric and 2D image-space metrics.

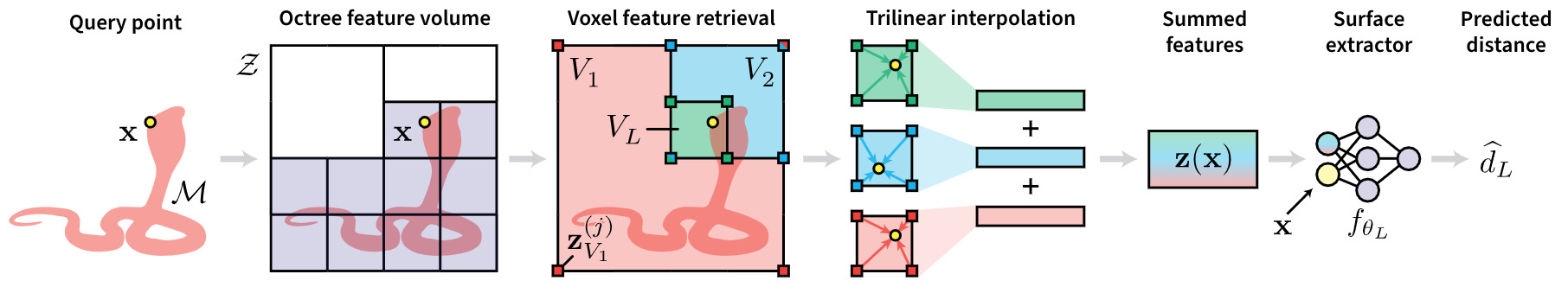

We encode shapes using a sparse voxel octree (SVO) based feature volume, where the levels of the tree corresponds to LOD. This lets us use a very small MLP, which accelerates rendering by 2-3 orders of magnitudes.

Results


We qualitatively compare the mesh reconstructions. Only ours is able to recover fine details, with speeds 50× faster than FFN and comparable to NI. We render surface normals to highlight geometric details.

We test against two difficult analytic SDF examples from Shadertoy; the Oldcar, which contains a highly non-metric signed distance field, as well as the Mandelbulb, which is a recursive fractal structure that can only be expressed using implicit surfaces. Only our architecture can reasonably reconstruct these hard cases. We render surface normals to highlight geometric details.

Additional reconstructions.

Paper


Neural Geometric Level of Detail:
Real-time Rendering with Implicit 3D Surfaces

Towaki Takikawa*, Joey Litalien*, Kangxue Yin, Karsten Kreis, Charles Loop, Derek Nowrouzezahrai, Alec Jacobson, Morgan McGuire & Sanja Fidler

*Authors contributed equally

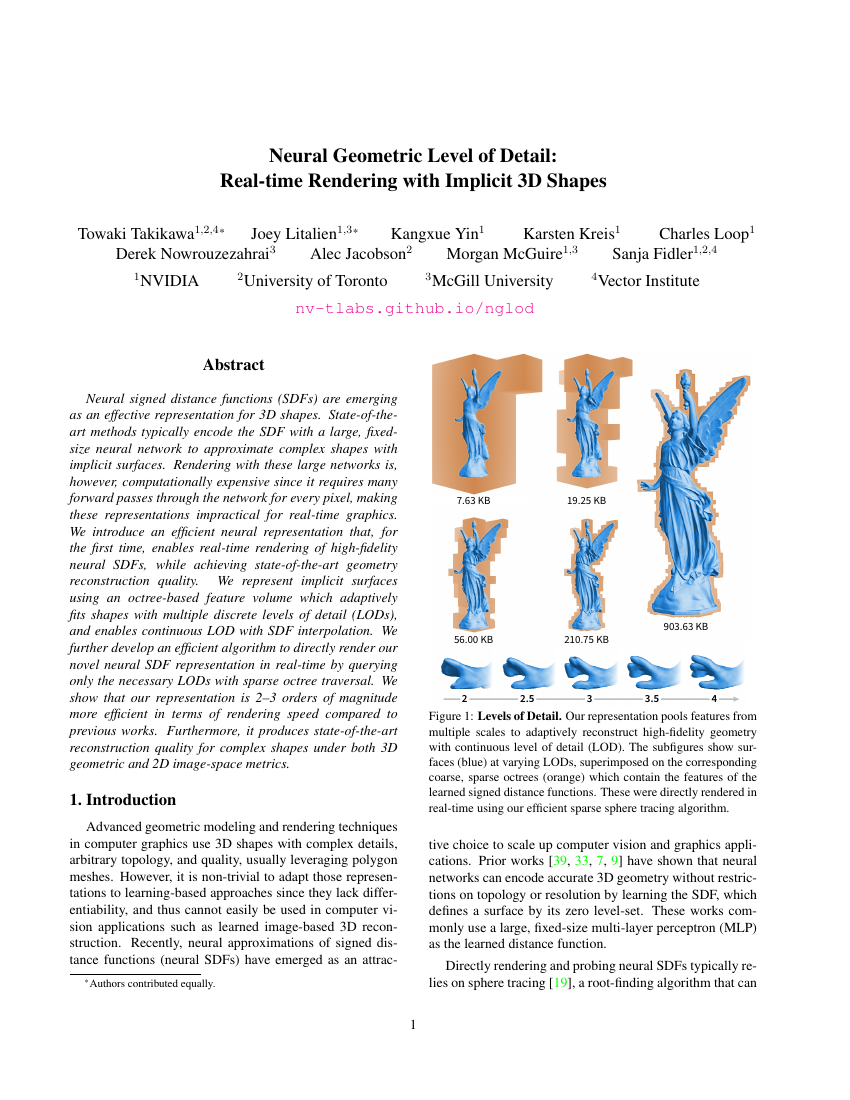

description Paper preprint (PDF, 6.2 MB)
description arXiv version
insert_comment BibTeX
integration_instructions Code
videocam Video

Please send feedback and questions to Towaki Takikawa

Citation


@article{takikawa2021nglod,
    title = {Neural Geometric Level of Detail: Real-time Rendering with Implicit {3D} Shapes},
    author = {Towaki Takikawa and
              Joey Litalien and
              Kangxue Yin and
              Karsten Kreis and
              Charles Loop and
              Derek Nowrouzezahrai and
              Alec Jacobson and
              Morgan McGuire and
              Sanja Fidler},
    booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
    year = {2021}
}

Acknowledgements


We would like to thank Jean-Francois Lafleche, Peter Shirley, Kevin Xie, Jonathan Granskog, Alex Evans, and Alex Bie at NVIDIA for interesting discussions throughout the project. We also thank Peter Shirley, Alexander Majercik, Jacob Munkberg, David Luebke, Jonah Philion and Jun Gao for their help with paper editing.
